222 KW 13,5 - 30m, KW 30 - 90m, MW
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 190187
Bild von Christian Grolms .
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 473 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 222 [KW 13,5 - 30m, KW 30 - 90m, MW] - Orion; Budapest
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 320 x 295 x 195 mm / 12.6 x 11.6 x 7.7 inch
- Notes
- KW 13,5 - 30m, KW 30 - 90m, MW.
- Net weight (2.2 lb = 1 kg)
- 5.7 kg / 12 lb 8.9 oz (12.555 lb)
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
- Other Models
-
Here you find 1029 models, 876 with images and 398 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Orion; Budapest
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Orion; Budapest: 222
Threads: 2 | Posts: 2
Skala Variation
Attachments

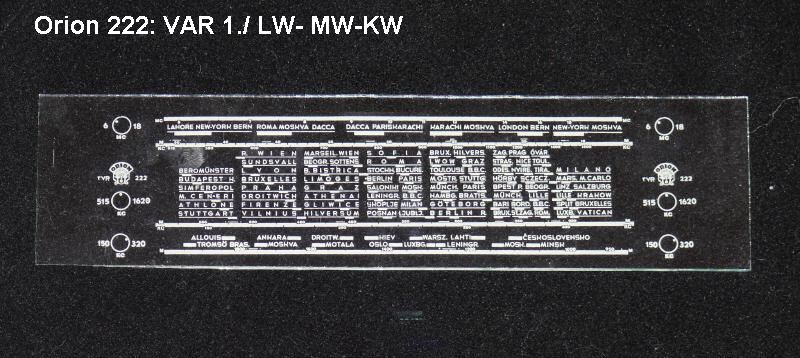

- orion222_var1 (69 KB)

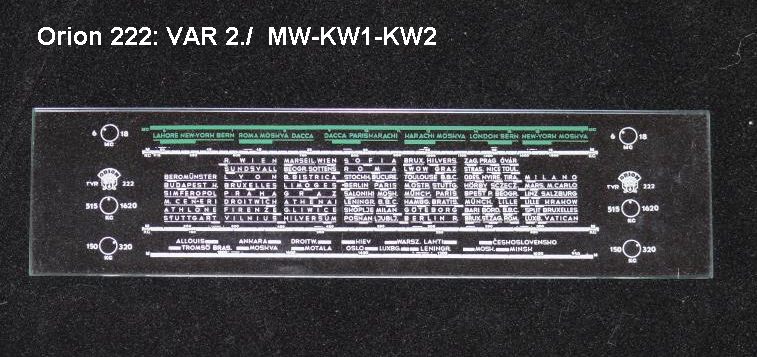

- orion222_var2 (73 KB)

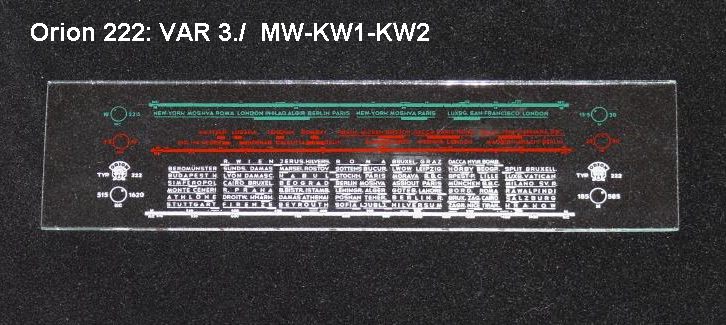

- orion222_var3 (64 KB)
Sándor Selyem-Tóth, 28.Jan.11
In der Hoffnung, dass diese drei lueckenlosen Skalen-Ausschnittsvergroesserungen die 2 KW-Bandbereiche meines ORION TYP 222 etwas besser darstellen koennen.
KW1 (grünes Frequenz-/Meterband) 10 - 22.5 MHz entsprechend 13.5 - 30 Meter
KW2 (rotes Frequens-/Meterband) 3.3 - 10 MHz entsprechend 30 - 90 Meter
Attachments

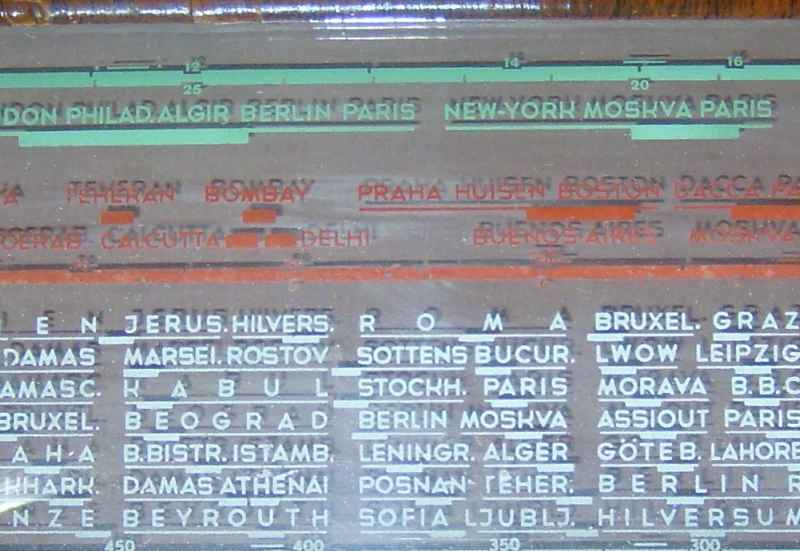

- H_Orion_222_Skalenvergrößerung LI (69 KB)
- H_Orion_222_Skalenvergrößerung Mitte (89 KB)
- H_Orion_222_Skalenvergrößerung RE (73 KB)
