• Year
  • 1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 114949

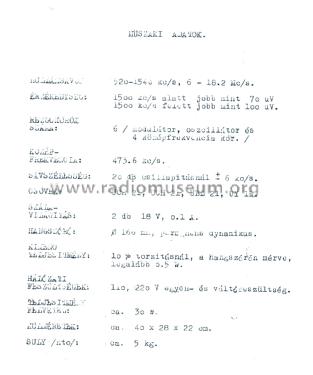

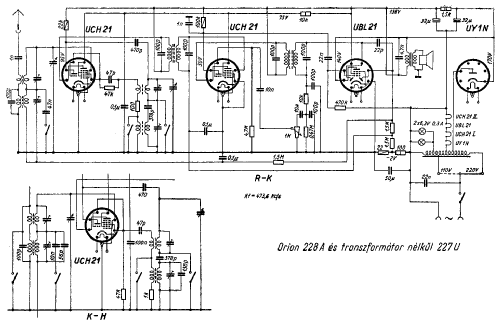

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 473,6 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • AC/DC-set / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 227U - Orion; Budapest
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 395 x 390 x 185 mm / 15.6 x 15.4 x 7.3 inch
  • Notes
  • Autotransformator, keine Netztrennung !
  • Net weight (2.2 lb = 1 kg)
  • 4.8 kg / 10 lb 9.2 oz (10.573 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
