• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114950

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org

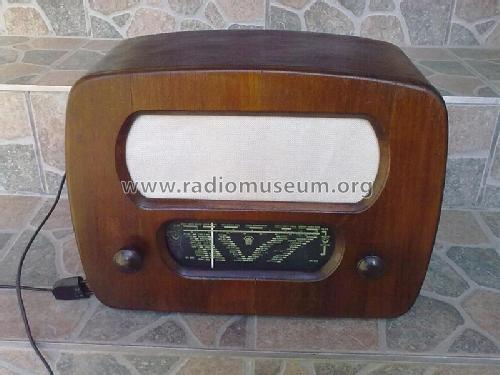

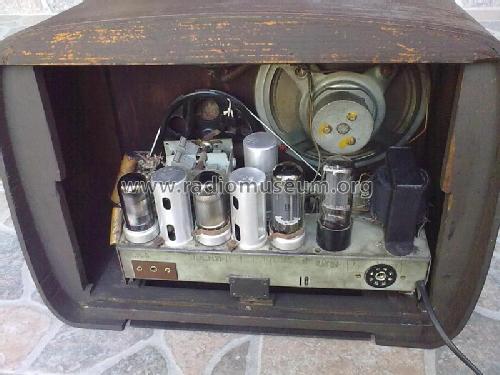

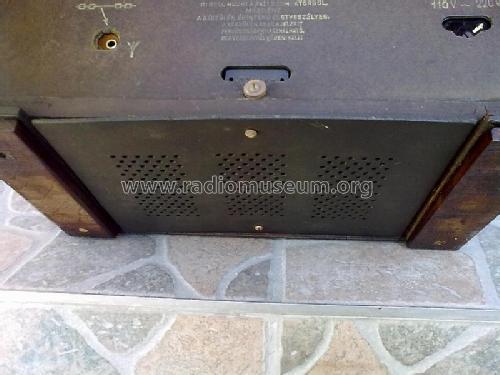

• Model: 228A [LW + MW Gehäuse abgerundet] - Orion; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 395 x 390 x 185 mm / 15.6 x 15.4 x 7.3 inch

• Notes
• Autotransformator, keine Netztrennung !

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Source of data
• Rádiókészülékek Kapcsolásai 1936-56

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)

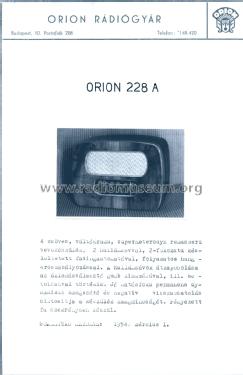

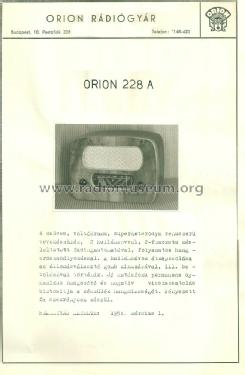

• -- Original-techn. papers.

• Author
• Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
