228A MW + KW Gehäuse eckig
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1955–1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 122212
Click on the schematic thumbnail to request the schematic as a free document.

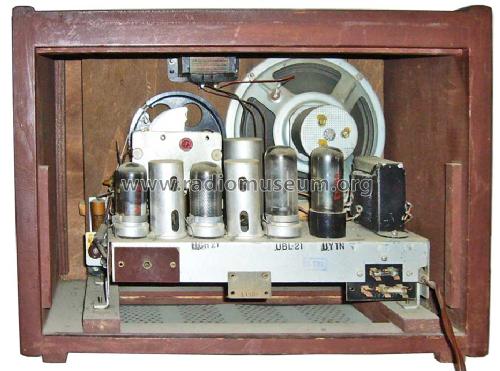

- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 473,6 kHz
- Tuned circuits
- 6 AM circuit(s)

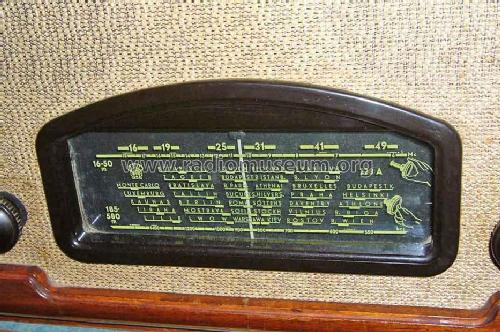

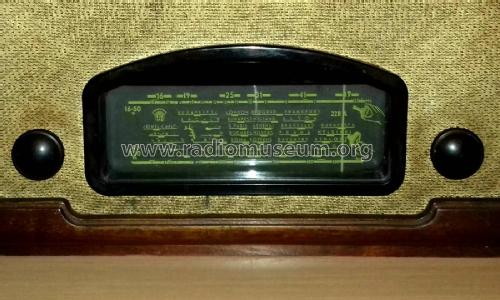

- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

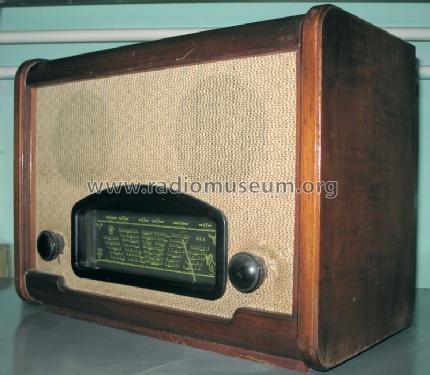

- Material
- Wooden case
- from Radiomuseum.org
- Model: 228A [MW + KW Gehäuse eckig] - Orion; Budapest

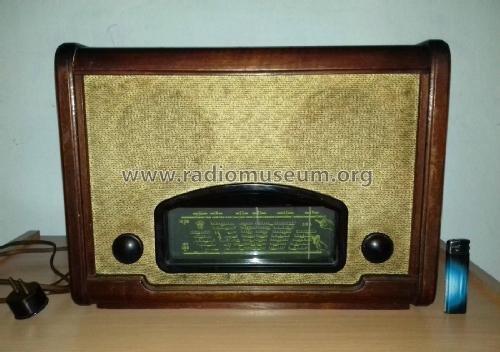

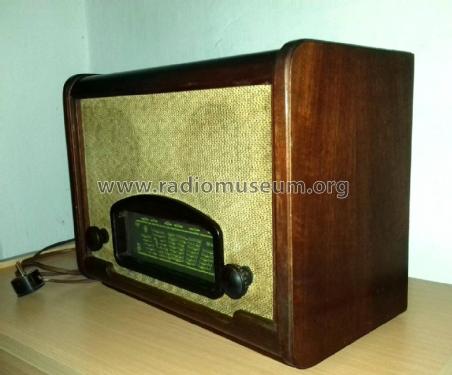

- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 390 x 285 x 200 mm / 15.4 x 11.2 x 7.9 inch
- Notes
- Autotransformator, keine Netztrennung !.
- Net weight (2.2 lb = 1 kg)
- 5.5 kg / 12 lb 1.8 oz (12.115 lb)
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Rádiókészülékek Kapcsolásai 1936-56
- Author
- Model page created by Malte Rosenbaum. See "Data change" for further contributors.
