• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83260

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF9 ECH4 EF9 ECH4 EM4 EBL1 EBL1 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 473,6 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105/110 120/125 130/135 150 185 210/220 230/250 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 25 cm = 9.8 inch

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

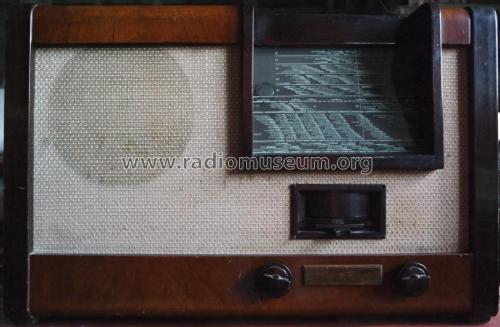

• Model: 288 - Orion; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 429 x 293 mm / 25.2 x 16.9 x 11.5 inch

• Notes
• 7 Kurzwellenbänder! Gegentaktendstufe!

• Source of data
• -- Original prospect or advert

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
