331
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 83368

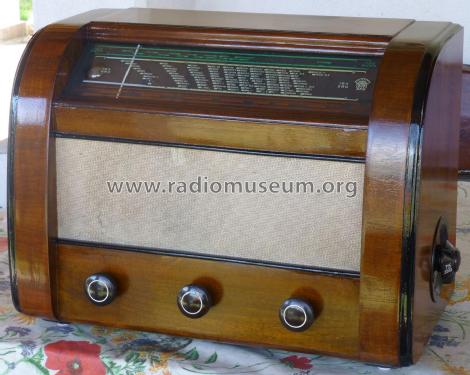

eigenes Foto, aufgenommen am 27.01.2013
Gehäusevariante
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 473,6 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 331 - Orion; Budapest
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 520 x 370 x 270 mm / 20.5 x 14.6 x 10.6 inch
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
- Mentioned in
- Rádiókészülékek Kapcsolásai 1936-56
- Author
- Model page created by Folkert Rothe. See "Data change" for further contributors.
