• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 150170

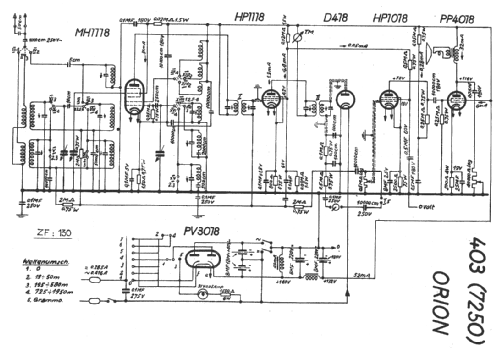

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• MH1118 HP1118 D418 HP1018 PP4018 PV3018

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 401 - Orion; Budapest

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• With Tuning-Meter.

• Literature/Schematics (1)
• Chronik eines Radioherstellers, Gunter Cramer 2007.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
