455G

• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1944

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83351

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 EF22 EF22 EBL21 EM4 AZ21

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details

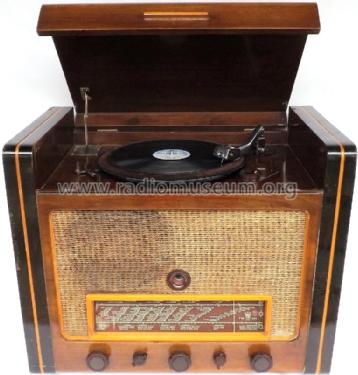

• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: 455G - Orion; Budapest

• Shape
• Tablemodel, low profile (big size).

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
