511
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1945
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 83347
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 473,6 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 220 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Bakelite case
- from Radiomuseum.org

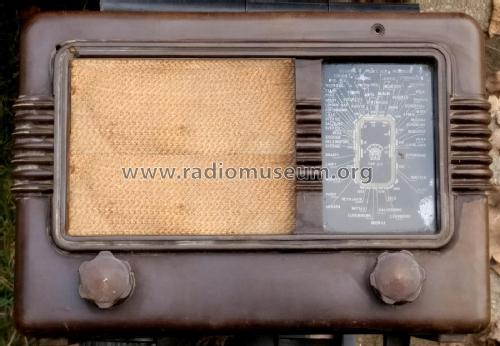

- Model: 511 - Orion; Budapest
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 255 x 180 x 150 mm / 10 x 7.1 x 5.9 inch
- Mentioned in
- Rádiókészülékek Kapcsolásai 1936-56
- Author
- Model page created by Folkert Rothe. See "Data change" for further contributors.
