• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83221

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM4 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

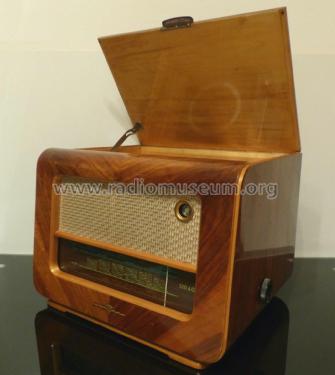

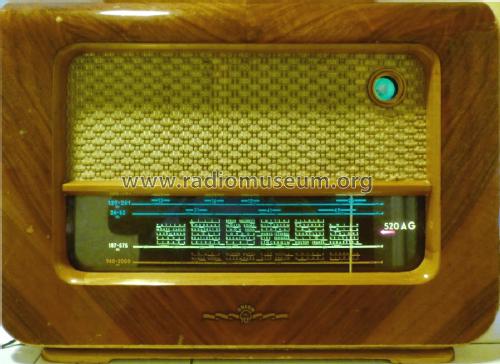

• Model: 520AG [010] - Orion; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 510 x 410 x 360 mm / 20.1 x 16.1 x 14.2 inch

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Price in first year of sale
• 2,980.00 HUF

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Literature/Schematics (1)
• Radio es Televizio Vevö keszülekek, 1956-57

• Literature/Schematics (4)
• Villamossági tömegcikkek árjegyzéke Bp. 1955

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
