• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83358

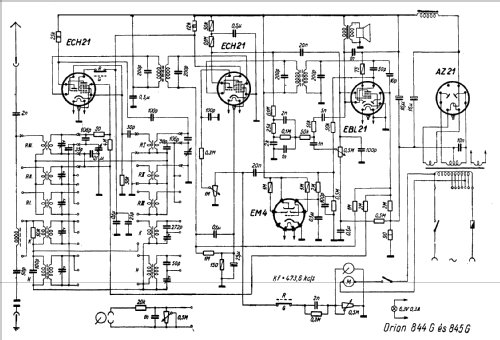

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ21 EM4

• Main principle
• Superheterodyne (common); ZF/IF 473,3 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Material
• Wooden case

• from Radiomuseum.org

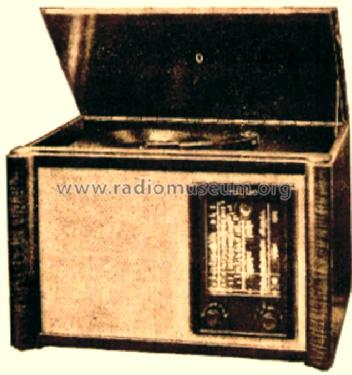

• Model: 844G - Orion; Budapest

• Shape
• Tablemodel, low profile (big size).

• Price in first year of sale
• 1,700.00 HUF

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
