• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 233076

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes

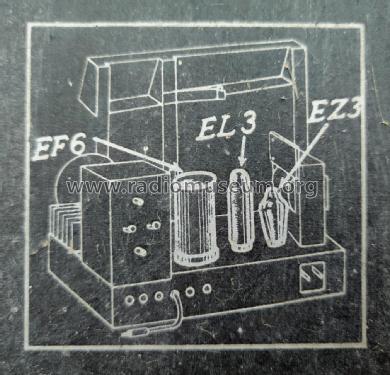

• EF6 EL3 EZ3

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

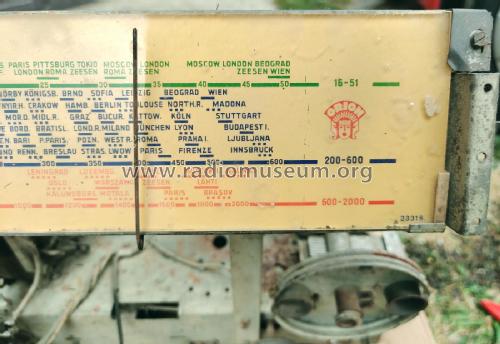

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

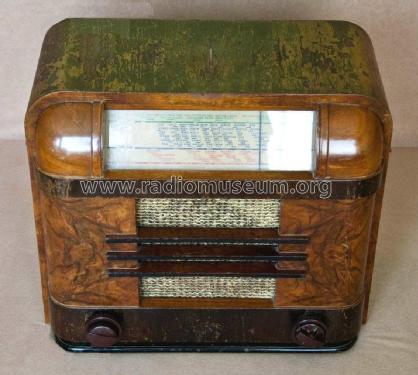

• Model: 933 [EF6] - Orion; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 350 x 240 mm / 15.7 x 13.8 x 9.4 inch

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 189.00 Pengő

• Literature/Schematics (4)
• Orion katalógus, Budapest 1939.

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.
