Anódpótló és töltőkészülék ONG 3 DC
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1930/1931
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 247135
- Wave bands
- - without
- Details
- Power: B-Battery Eliminator
- Power type and voltage
- Direct Current supply (DC) / DC 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Anódpótló és töltőkészülék ONG 3 DC - Orion; Budapest
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 162 x 165 x 204 mm / 6.4 x 6.5 x 8 inch

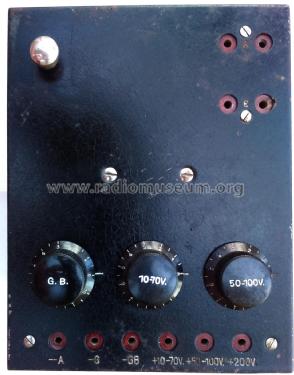

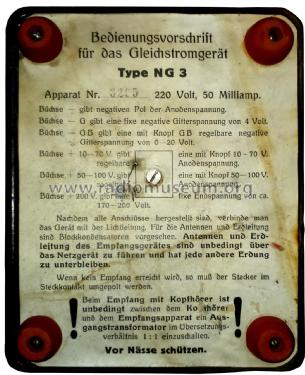

- Notes
-
- Grid fix: 4V
- Grid controlled: 0-20V
- Anod fix: 200V (170-220V)
- Anod controlled: 10-70V, 50-100V)
- Imax.: 50mA
- Net weight (2.2 lb = 1 kg)
- 3.549 kg / 7 lb 13.1 oz (7.817 lb)
- Price in first year of sale
- 220.00 Pengő
- Literature/Schematics (2)

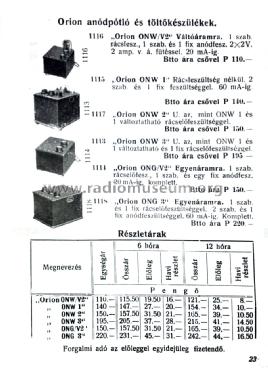

- Reich Rádió Katalógus, BP. 1930.
- Literature/Schematics (3)
- Barta és Társa Árjegyzék, 39. Bp. 1931.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
