AR312 Prototype
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 333610
Thanks for Mr. József Nádler, Hungary!
Thanks for Mr. József Nádler, Hungary!
Thanks for Mr. József Nádler, Hungary!
Thanks for STS Archív, Hungary!
Thanks for STS Archív, Hungary!
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 473,6 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage

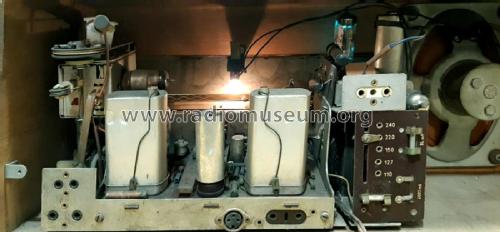

- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker

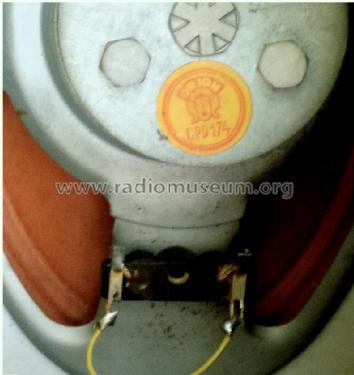

- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: AR312 [Prototype] - Orion; Budapest
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 510 x 250 x 180 mm / 20.1 x 9.8 x 7.1 inch
- Notes
-
It was never produced, only a prototype.
The magic eye is not visible on the front side. It is not known why they were employed.

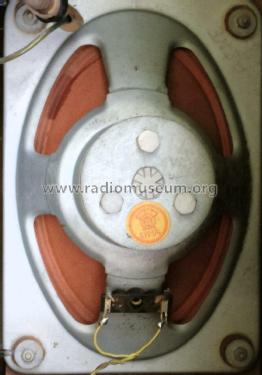

The black keys switch voice registers.Speaker size: 9 x 13 cm
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Literature/Schematics (1)
- -- Collector info (Sammler)
- Author
- Model page created by Sándor Perneky. See "Data change" for further contributors.
