AR322 01
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 91172
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 473,6/1070 kHz
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage

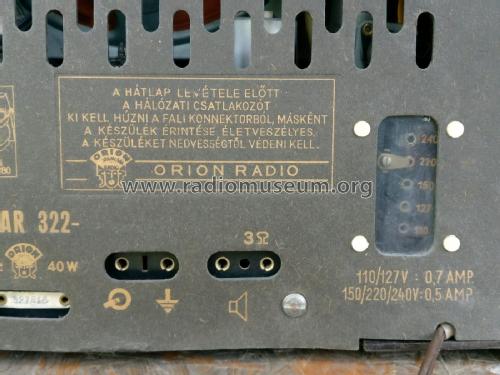

- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1.2 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: AR322 [01] - Orion; Budapest
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 320 x 270 x 250 mm / 12.6 x 10.6 x 9.8 inch
- Notes
- UKW 87,5-100 MHz, KW 6-18,2 MHz.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Price in first year of sale
- 1,560.00 Forint
- Source of data
- Radio es Televizio Vevö Keszülekek, 1960-63
- Author
- Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
