• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1956–1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108774

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 150, 220, 240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 16 cm = 6.3 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

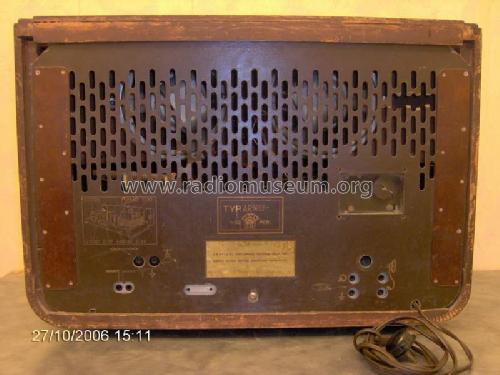

• Model: AR602F [010] - Orion; Budapest

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 570 x 400 x 220 mm / 22.4 x 15.7 x 8.7 inch

• Notes
• Ferritantenne IF: 473,6 kHz.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 2,590.00 HUF

• Source of data
• - - Data from my own collection

• Mentioned in
• Radio es Televizio Vevö keszülekek, 1956-57

• Literature/Schematics (1)
• Radio es Televizio Vevö keszülekek, 1956-57

• Author
• Model page created by Witold Czerski. See "Data change" for further contributors.
