Pacsirta (Lerche) AR612 Export
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127875

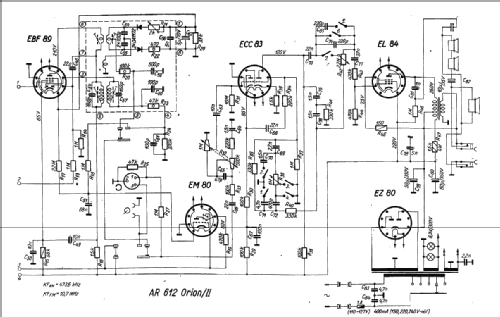

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 473,6/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Pacsirta AR612 [Export] - Orion; Budapest
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 690 x 410 x 300 mm / 27.2 x 16.1 x 11.8 inch
- Notes
- UKW 87 - 108 MHz,
KW1 2,2 - 6 MHz,
KW2 5,8 - 12,5 MHz,
KW3 11,5 - 21,9 MHz,
MW 521 - 1600 KHz.
- Net weight (2.2 lb = 1 kg)
- 15.3 kg / 33 lb 11.2 oz (33.7 lb)
- Price in first year of sale
- 2,800.00 HUF
- Source of data
- - - Data from my own collection
- Mentioned in
- -- Schematic (Rádióvevõkészülékek Kapcsolása - Kádár G. - 1963)
- Author
- Model page created by José Manuel Silvestre. See "Data change" for further contributors.
