• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140824

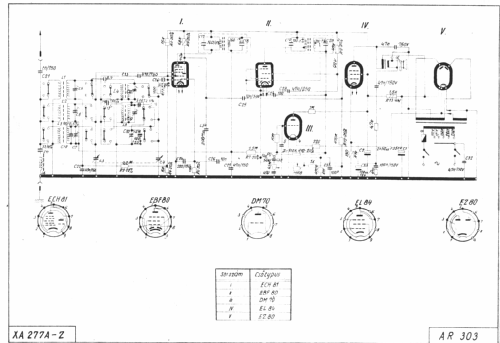

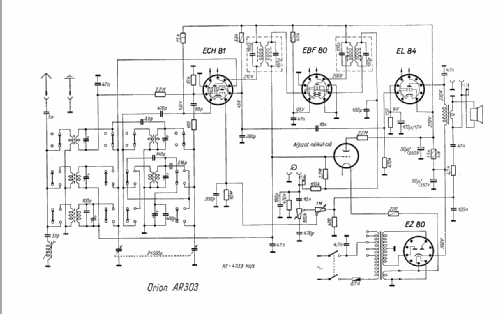

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF80 EL84 EZ80 DM70

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

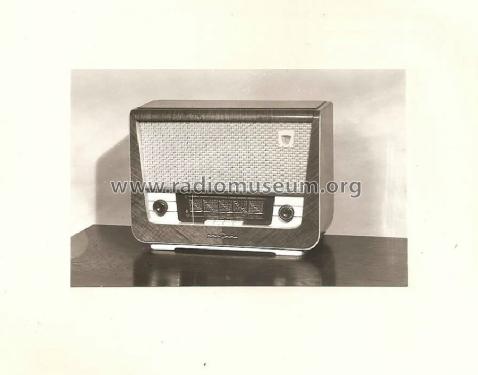

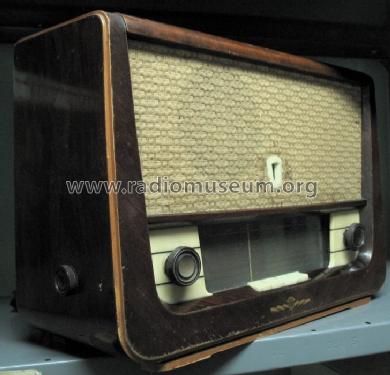

• Model: AR 303 [060] - Orion; Budapest

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 500 x 350 x 200 mm / 19.7 x 13.8 x 7.9 inch

• Notes
• SW: 3,75-12MHz.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 1,420.00 HUF

• Literature/Schematics (1)
• Radio es Televizio Vevö keszülekek, 1956-57

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
