• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 170436

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 473,6/10700 kHz

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

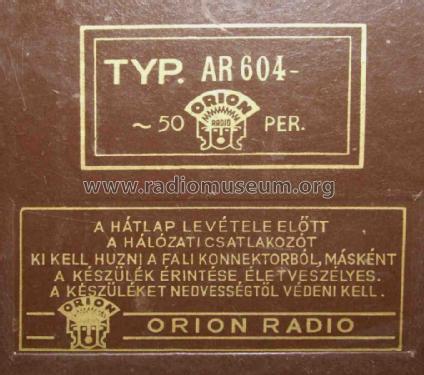

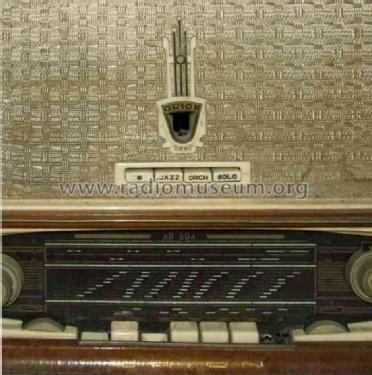

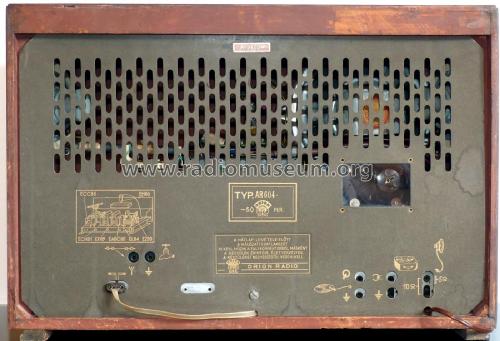

• Model: AR 604 [020] - Orion; Budapest

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 560 x 385 x 240 mm / 22 x 15.2 x 9.4 inch

• Notes
• Marine band: 60-187 m.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 2,800.00 HUF

• Source of data
• Radio es Televizio Vevö keszülekek, 1956-57

• Literature/Schematics (1)
• Radio es Televizio Vevö keszülekek, 1956-57

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
