AT401/A

• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 87105

• Picture
• Schematics

Previous Next

Previous Next

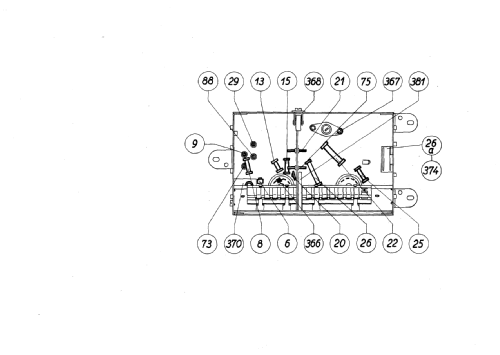

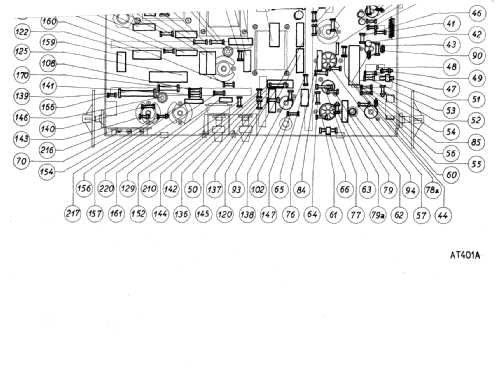

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• DY80 ECH81 ECL80 ECL80 EF80 EF80 EF80 EH81 PCC84 PCF82 PL81 PY82 PY83 43SCP4

• Main principle
• Superheterodyne (common); ZF/IF 38000 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 127/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: AT401/A - Orion; Budapest

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 490 x 460 x 480 mm / 19.3 x 18.1 x 18.9 inch

• Notes
• Der Fernsehempfänger AT401 A empfängt Kanal 3 und 4, sowie die Kanäle 5 - 9.

• Net weight (2.2 lb = 1 kg)
• 27 kg / 59 lb 7.5 oz (59.471 lb)

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Radio es Televizio Vevö Keszülekek, 1958-59

• Literature/Schematics (1)
• Importgeräte- CD, Funkverlag B. Hein

• Author
• Model page created by Michael Schmiedecke. See "Data change" for further contributors.
