AT603J
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1958 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 346654
- Number of Tubes
- 18
- Valves / Tubes
- PCC88 PCF82 EF80 EF80 EM80 EF80 PCL84 ECH81 EF80 PABC80 PL82 ECH81 PCL82 ECC82 PL36 PY83 DY86 AW53-80
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

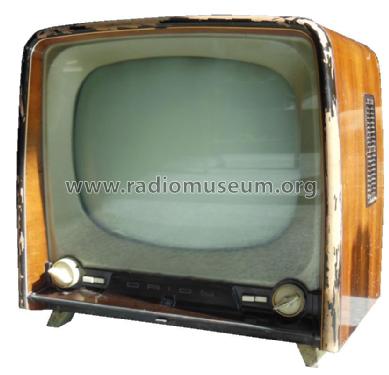

- Model: AT603J - Orion; Budapest
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 620 x 600 x 520 mm / 24.4 x 23.6 x 20.5 inch
- Notes
-
Probably only parts were produced by Orion, but assembly/tuning was realized in YU, as is written on backside to, see model AT603J at Telekomunikacije Ljubljana.
- Net weight (2.2 lb = 1 kg)
- 37 kg / 81 lb 8 oz (81.498 lb)
- Literature/Schematics (1)
- info_ web
- Author
- Model page created by Sándor Perneky. See "Data change" for further contributors.
