Alfa AT650
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1961 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 151477
Thanks for Mr.Sik Béla, Hungary!
- Number of Tubes
- 17
- Valves / Tubes
- PCC189 PCF80 EF183 EF183 EF184 PCL84 EBF89 EF80 PCL86 EF80 ECH84 PCL85 ECH84 PL500 PY88 DY86 AW59-90
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

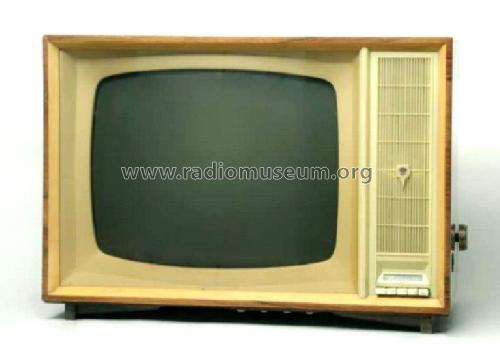

- Model: Alfa AT650 - Orion; Budapest
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 740 x 520 x 280 mm / 29.1 x 20.5 x 11 inch
- Notes
- OIRT Kanal 1-12. Screen: 59 cm.
- Net weight (2.2 lb = 1 kg)
- 38 kg / 83 lb 11.2 oz (83.7 lb)
- Price in first year of sale
- 7,500.00 HUF
- Source of data
- Radio es Televizio Vevö Keszülekek, 1960-63
- Literature/Schematics (2)
- -- Original-techn. papers.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
