• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 168983

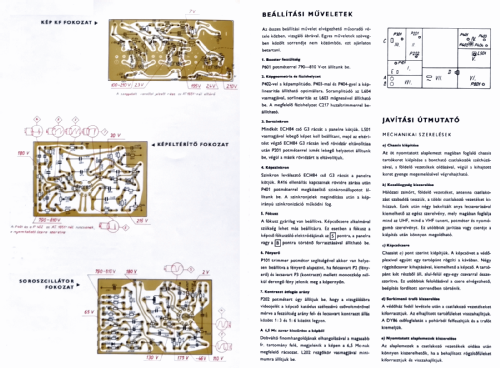

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: AT-651 - Orion; Budapest

• Shape
• Tablemodel, with any shape - general.

• Notes
• VHF , Speaker: 398×95 mm / 4 Ohm. OIRT 1,2,4,8,9,11,12 CCIR 3,5,6,7,10.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Price in first year of sale
• 7,830.00 HUF

• Literature/Schematics (4)
• Híradástechnikai cikkek kereskedelmi árjegyzéke, BP. 1967

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
