• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 102248

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5T 1T4T 1S5T 3V4

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage and/or dry batteries / 90 & 1,4 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Power out
• 0.15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

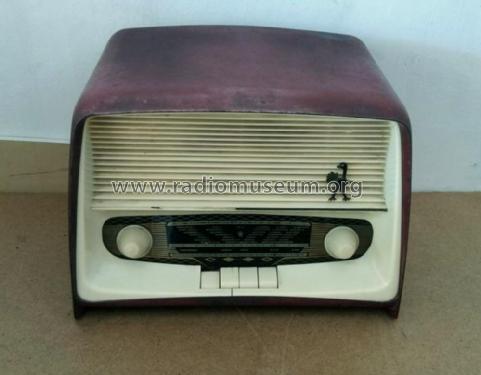

• Model: BR211 - Orion; Budapest

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 300 x 250 x 200 mm / 11.8 x 9.8 x 7.9 inch

• Notes
• SW: 3,5 - 10,5 MHz.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Source of data
• Radio es Televizio Vevö Keszülekek, 1958-59

• Author
• Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
