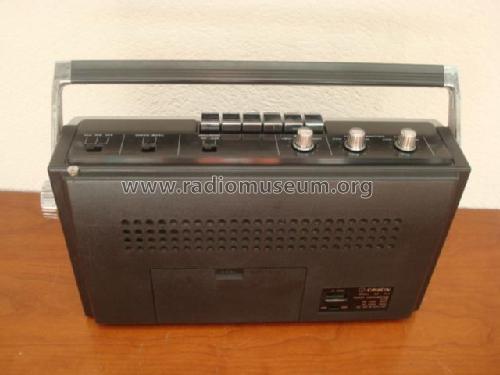

Cassette Tape Recorder 3 Band FM Stereo/SW/AM 401

Orion Electric Co., Ltd.; Echizen-shi (Fukui)

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 263544

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 120; 220 / D: 4 x 1,5 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 10 cm = 3.9 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette Tape Recorder 3 Band FM Stereo/SW/AM 401 - Orion Electric Co., Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 380 x 210 x 105 mm / 15 x 8.3 x 4.1 inch
  • Notes

  • Antena empotrable telescopica orientable 56cm.
    Control independiente del volumen en altavoces.
    Control de Tono.

  • Net weight (2.2 lb = 1 kg)
  • 3 kg / 6 lb 9.7 oz (6.608 lb)
  • Author
  • Model page created by Abel Cubas Torres. See "Data change" for further contributors.
