- Country
- Japan
- Manufacturer / Brand
- Orion Electric Co., Ltd.; Echizen-shi (Fukui)
- Year
- 1980 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 201945
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- 23
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 220; 12; 15 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

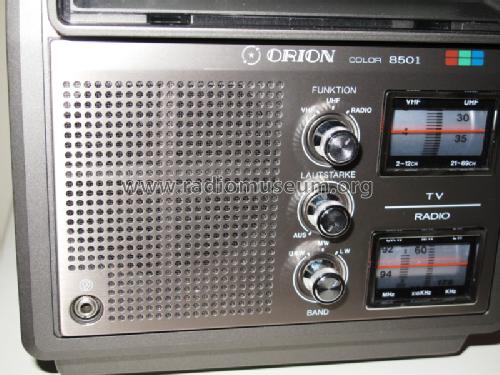

- Model: Color 8501 - Orion Electric Co., Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 174 x 270 x 298 mm / 6.9 x 10.6 x 11.7 inch
- Notes
- Getrennte stufenlos abstimmbare Tuner für VHF/UHF, Radioteil mit UKW, MW, LW. CCIR und PAL-System. Mögliche Stromversorgung AC: 220 V, DC: 15 V (10 x Monozelle) oder 12 V (Autobatterie oder einsetzbarer, spezieller NC-Akku). Farbbildröhre 14 cm mit 55° Ablenkung. 9 IC's, 49 Dioden.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Price in first year of sale
- 550.00 DM
- Source of data
- - - Data from my own collection
- Author
- Model page created by Andreas Echtner. See "Data change" for further contributors.
