Duna AT 505 ( AT 505-622)

Orion; Budapest

Data
Forum
Pictures
Collections

  • Year
  • 1962–1964
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 214988

 Technical Specifications

  • Number of Tubes
  • 15
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Duna AT 505 - Orion; Budapest
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 620 x 560 x 580 mm / 24.4 x 22 x 22.8 inch
  • Notes

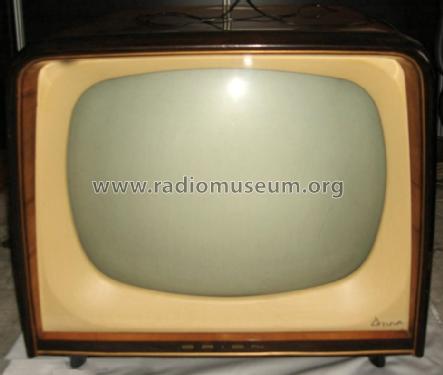

  • Screen 53 cm TV mit 12 Kanal Trommelkanalwähler, VHF-Bereiche.

    This serie was introduced in 1959, but Duna AT 505-622 is from 1962 with the two PY82 replaced by selenium dieodes. The other major change was introduced due to disruption of radiation.

  • Net weight (2.2 lb = 1 kg)
  • 34 kg / 74 lb 14.2 oz (74.89 lb)
  • Price in first year of sale
  • 5,900.00 HUF
