• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1978

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 133226

• Number of Tubes
• 9

• Valves / Tubes

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 19 cm = 7.5 inch

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Merkur AT-5761 - Orion; Budapest

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 700 x 480 x 350 mm / 27.6 x 18.9 x 13.8 inch

• Notes
• Tube: 61 cm, 2 IC. VHF 1-12, UHF 21-60, OIRT-CCIR.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Source of data

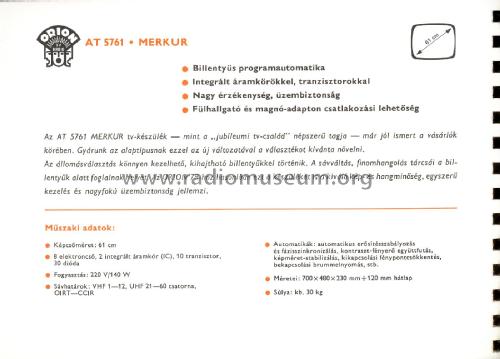

• -- Original prospect or advert

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.

• Other Models

• Here you find 1029 models, 876 with images and 398 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
