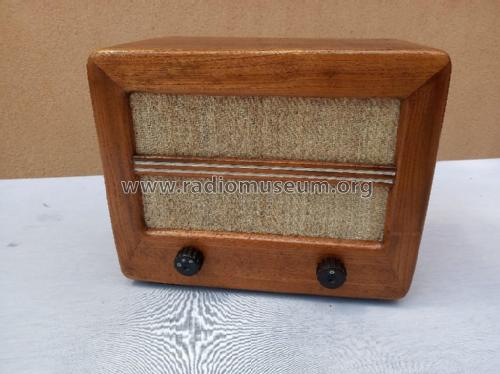

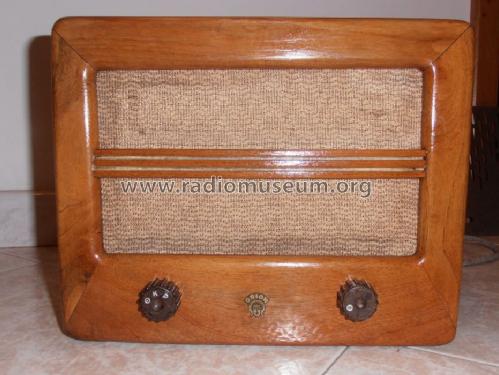

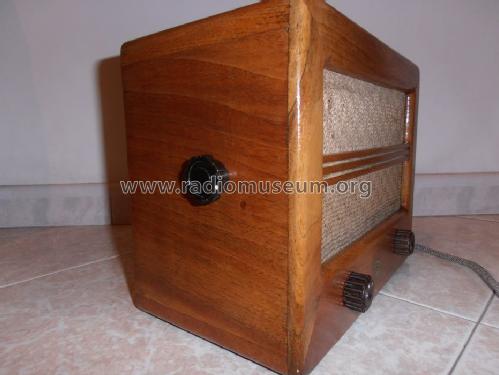

Néprádió 313 Wooden case
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 205657
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 473,6 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Néprádió 313 [Wooden case] - Orion; Budapest
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 300 x 250 x 180 mm / 11.8 x 9.8 x 7.1 inch
- Notes
- 3 fixed stations.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Price in first year of sale
- 380.00 HUF
- Source of data
- Rádiókészülékek Kapcsolásai 1936-56
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
