• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17940

Click on the schematic thumbnail to request the schematic as a free document.

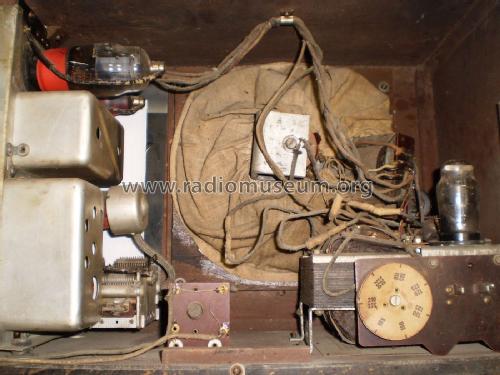

• Number of Tubes
• 4

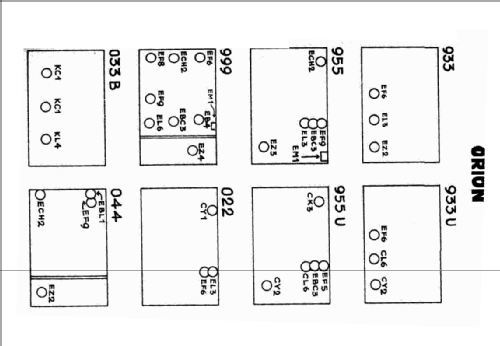

• Valves / Tubes
• ECH2 EF9 EBL1 EZ2

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 105-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

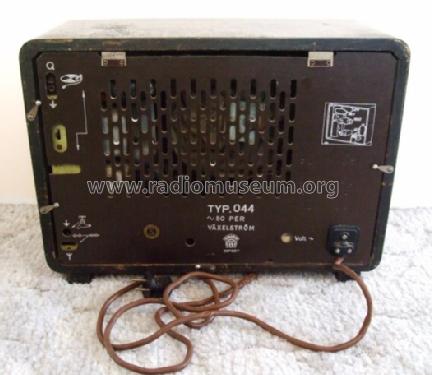

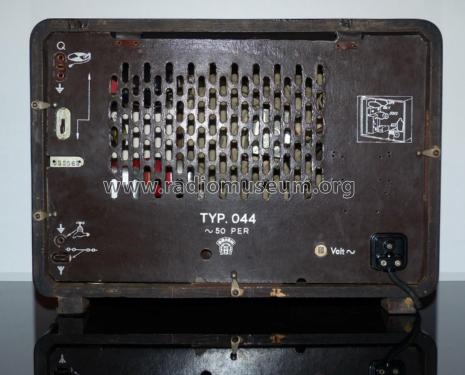

• Model: 044 - Orion; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 473 x 326 x 231 mm / 18.6 x 12.8 x 9.1 inch

• Notes
• auch ECH3

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Price in first year of sale
• 295.00 SFR

• External source of data
• E. Erb 3-907007-36-0

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
