228A MW + KW Gehäuse abgerundet

• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174818

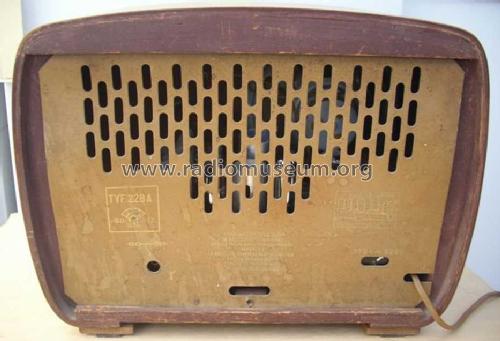

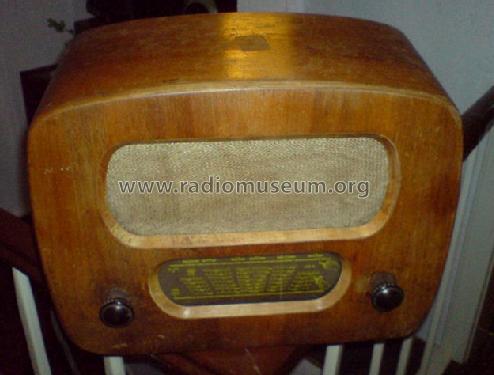

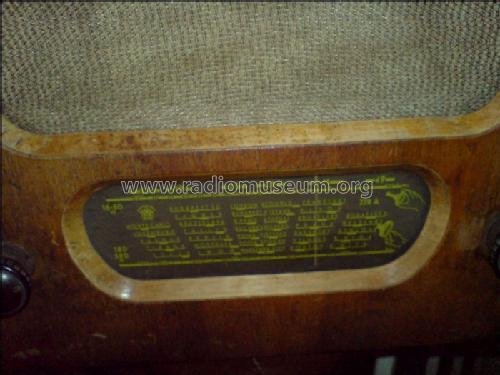

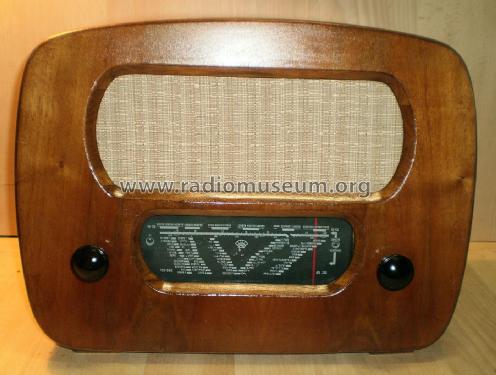

• Picture

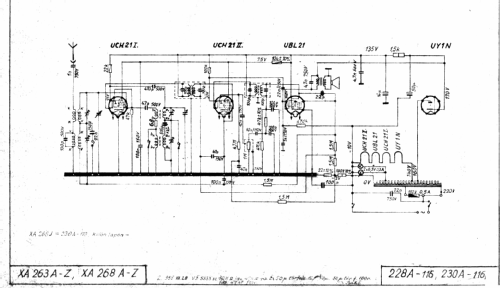

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

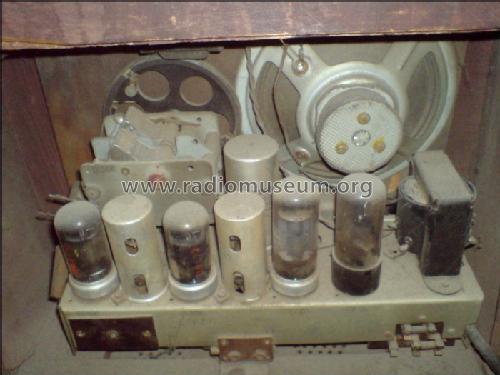

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 228A [MW + KW Gehäuse abgerundet] - Orion; Budapest

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 390 x 290 x 195 mm / 15.4 x 11.4 x 7.7 inch

• Notes
• Autotransformator, keine Netztrennung !.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Source of data
• - - Manufacturers Literature

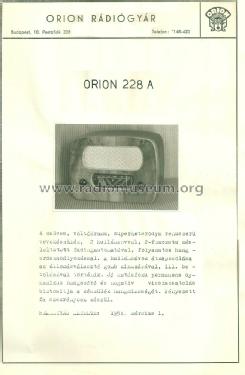

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Armand Verboven. See "Data change" for further contributors.
