• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 336338

• Number of Transistors
• 7

• Semiconductors
• 2N219 2N218 2N218 П14 П14 П6_tr П6_tr OA1160

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

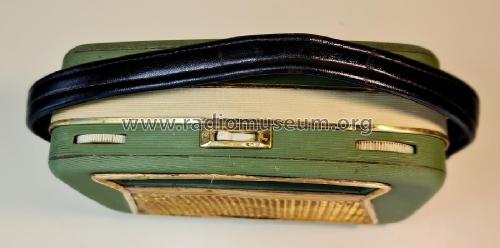

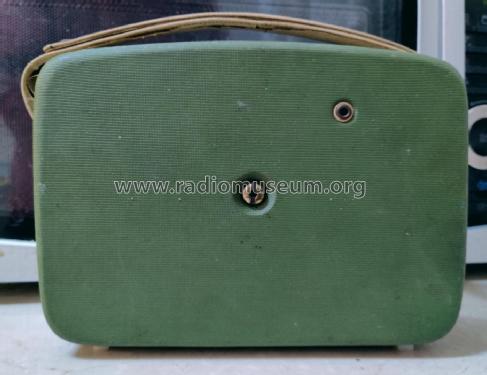

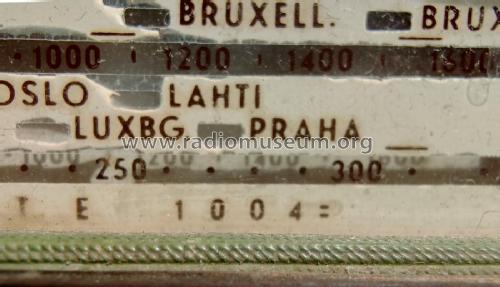

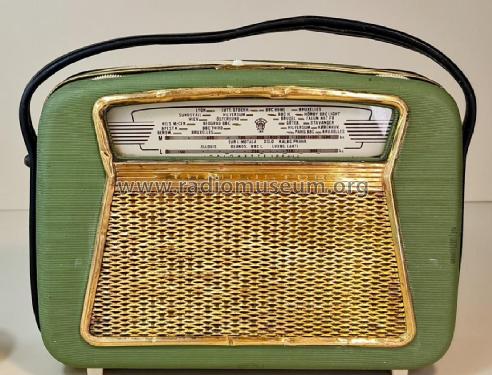

• Model: Orionette 1004 - Orion; Budapest

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 178 x 79 mm / 9.4 x 7 x 3.1 inch

• Notes

• Hergestellt bei Telefongyar, Terta TRT.

  Parallelgerät zum Modell Orionette 1004 Terta.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
