Orionette 1004-1

• Country
• Hungary

• Manufacturer / Brand
• Telefongyar, Terta (TRT, Export = Orion); Budapest

• Year
• 1959–1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77919

• • Brand: Terta, TRT

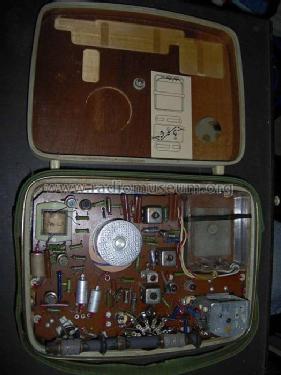

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Orionette 1004-1 - Telefongyar, Terta TRT, Export

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 178 x 79 mm / 9.4 x 7 x 3.1 inch

• Notes

• See also Orion model Orionette 1004-1.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Mentioned in
• Radio es Televizio Vevö Keszülekek, 1960-63

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.

• Other Models

• Here you find 218 models, 203 with images and 55 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefongyar, Terta (TRT, Export = Orion); Budapest
