• Country
• Japan

• Manufacturer / Brand
• Orion Electric Co., Ltd.; Echizen-shi (Fukui)

• Year
• 1979

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 196913

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Batteries / addl. power jack / 6 x 1.5 / 6 / 9 - 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

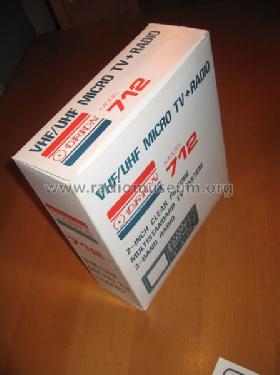

• Model: Radio Micro TV 712 - Orion Electric Co., Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 150 x 55 x 200 mm / 5.9 x 2.2 x 7.9 inch

• Notes
• The Orion Radio Micro TV receives FM, OC/SW, OM/MW in radio mode,
  VHF 1 channel A - C, VHF 3 channel D - H2, UHF channel 21 - 69 in TV mode.
  Made in Taiwan.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Mentioned in
• Funkschau (21/1979, S. 1200 / Internationale Funkausstellung)

• Author
• Model page created by Giovanni Scalavino. See "Data change" for further contributors.
