• Country
• Japan

• Manufacturer / Brand
• Orion Electric Co., Ltd.; Echizen-shi (Fukui)

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 186676

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

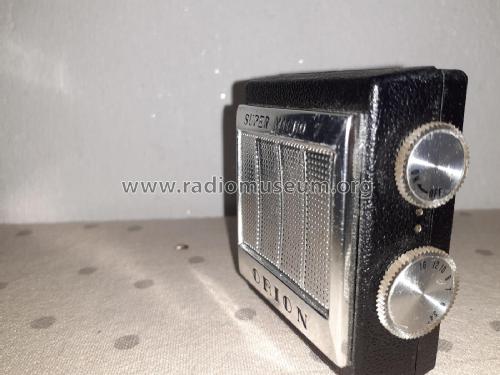

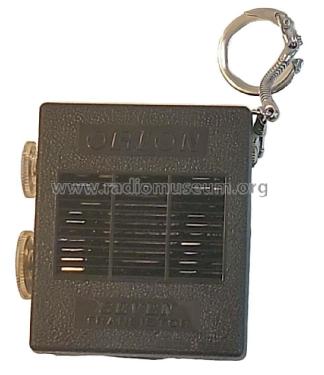

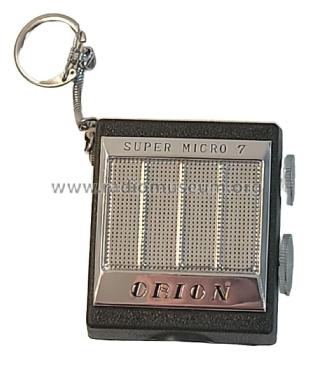

• Model: Super Micro 7 Seven Transistor - Orion Electric Co., Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 60 x 66 x 26 mm / 2.4 x 2.6 x 1 inch

• Notes

• Orion Seven Transistor Micro Radio.

  Made in Japan JT-602

• Net weight (2.2 lb = 1 kg)
• 0.150 kg / 0 lb 5.3 oz (0.33 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
