• Country
• Japan

• Manufacturer / Brand
• Orion Electric Co., Ltd.; Echizen-shi (Fukui)

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 229949

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 1 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch

• Power out
• 0.2 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

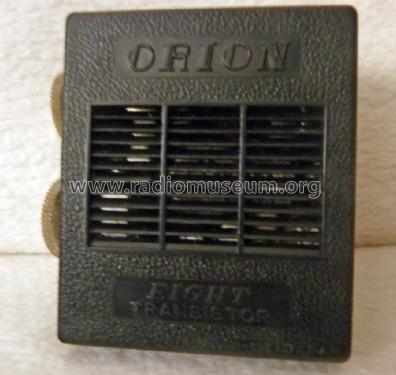

• Model: Super Micro Eight Transistor M8P - Orion Electric Co., Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 57 x 65 x 27 mm / 2.2 x 2.6 x 1.1 inch

• Notes

• Made in Japan JT-602

• Author
• Model page created by Joachim Gittel †. See "Data change" for further contributors.
