• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 172898

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• UCH42 12BA6 12AT6 50B5 EM4 50B5 35W4 35W4

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

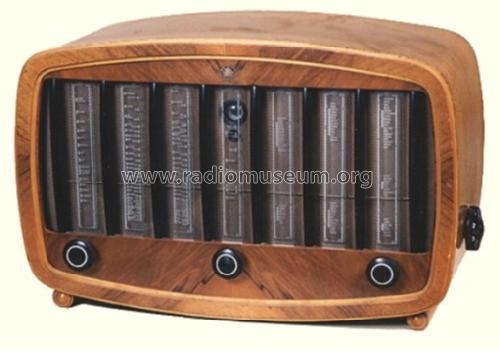

• Model: Qualiton TU117 - Orion; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 360 x 280 mm / 22.8 x 14.2 x 11 inch

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
