- Country
- Italy
- Manufacturer / Brand
- OST (O.S.T.), Officina Specializzata Trasformatori; Milano
- Year
- 1941 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 317550
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 467 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 140; 160; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 24 cm = 9.4 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Imperiale 601 - OST O.S.T., Officina
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 630 x 350 x 260 mm / 24.8 x 13.8 x 10.2 inch
- Notes
-
O.S.T. Radio Imperiale Serie 600 Mod. 601.

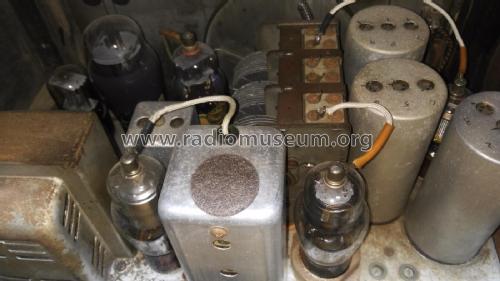

La radio monta telaio in scatola di montaggio Geloso Super G 65-A.
- Net weight (2.2 lb = 1 kg)
- 14.4 kg / 31 lb 11.5 oz (31.718 lb)
- Literature/Schematics (1)
- Bollettino Tecnico Geloso
- Author
- Model page created by Franco Citi. See "Data change" for further contributors.
