Minor 146

Ostfold Radio A/S; Frederikstad

Data

Forum

Pictures

Collections

Country
Norway

Manufacturer / Brand
Ostfold Radio A/S; Frederikstad

Year
1946/1947

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
71490

Schematics

Minor 146; Ostfold Radio A/S; (ID = 1136312) Radio — Ostfold Radio A/S; Minor 146 (2)

Minor 146; Ostfold Radio A/S; (ID = 1136313) Radio — Ostfold Radio A/S; Minor 146 (2)

Minor 146; Ostfold Radio A/S; (ID = 1136315) Radio — Ostfold Radio A/S; Minor 146 (2)

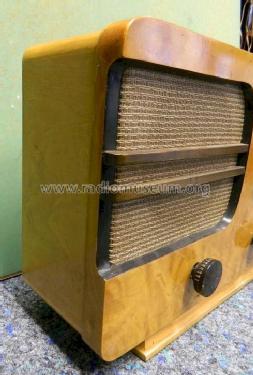

Minor 146; Ostfold Radio A/S; (ID = 1136317) Radio — Ostfold Radio A/S; Minor 146 (2)

Minor 146; Ostfold Radio A/S; (ID = 1136319) Radio — Ostfold Radio A/S; Minor 146 (2)

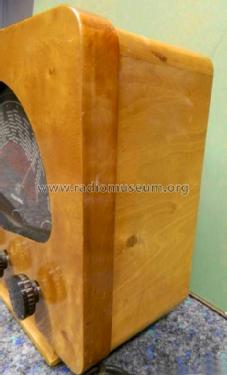

Minor 146; Ostfold Radio A/S; (ID = 1136320) Radio — Ostfold Radio A/S; Minor 146 (2)

Minor 146; Ostfold Radio A/S; (ID = 1136321) Radio — Ostfold Radio A/S; Minor 146 (2)

Minor 146; Ostfold Radio A/S; (ID = 1136324) Radio — Ostfold Radio A/S; Minor 146 (2)

Technical Specifications

Number of Tubes
5

Valves / Tubes
ECH35 EBF32 EF39 EL33 U50

Main principle
Superheterodyne (common); ZF/IF 465 kHz

Wave bands
Broadcast, Long Wave and Short Wave.

Power type and voltage
Alternating Current supply (AC) / 130-240 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch

Material
Wooden case

from Radiomuseum.org
Model: Minor 146 - Ostfold Radio A/S;

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
580 x 340 x 160 mm / 22.8 x 13.4 x 6.3 inch

Price in first year of sale
428.00 NKr.

Author
Model page created by Ernst Rykkje. See "Data change" for further contributors.
