• Country
• Germany

• Manufacturer / Brand
• Owin; Hannover

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139574

• Number of Tubes
• 4

• Valves / Tubes
• REN904 REN904 RES164 RGN564

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 155; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

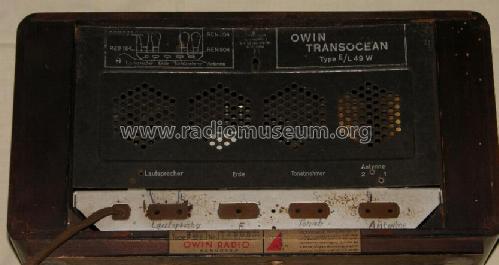

• Model: Transocean E/L 49W - Owin; Hannover

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 415 x 160 x 220 mm / 16.3 x 6.3 x 8.7 inch

• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Martin Steyer. See "Data change" for further contributors.
