• Country
• Germany

• Manufacturer / Brand
• Owin; Hannover

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7531

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1294 or H4128D RENS1284 or H4128D RES964 or L496D RGN1054 or RGN1064 or G1054

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

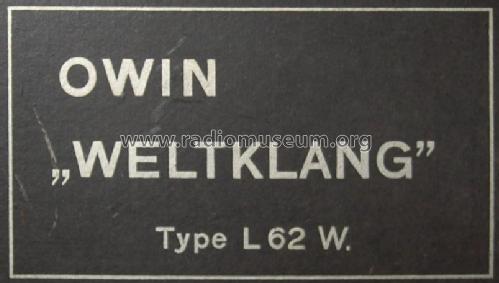

• Model: Weltklang L62W - Owin; Hannover

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 410 x 450 x 225 mm / 16.1 x 17.7 x 8.9 inch

• Net weight (2.2 lb = 1 kg)
• 11.6 kg / 25 lb 8.8 oz (25.551 lb)

• Price in first year of sale
• 182.00 RM +

• Source of data
• Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• -- Schematic (OTO-Schaltungen)

• Literature/Schematics (1)
• Lange / Nowisch, "Empfängerschaltungen der Radioindustrie"
