Viking Model 93-B Ch-93AC Winnetka Cabinet
Ozarka Inc.; Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Ozarka Inc.; Chicago
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 279672
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Viking Model 93-B Ch-93AC [Winnetka Cabinet] - Ozarka Inc.; Chicago
- Notes
-
Viking Model 93-B with dynamic speaker, tubes with Winnetka Cabinet.

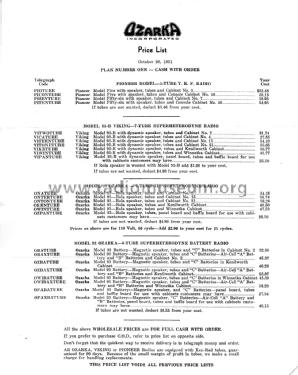

Taken from Ozarka Sales Literature, Winnetka Cabinet dealer priced at $43.77.
(The Winnetka Cabinet Viking was likely a console)
- Price in first year of sale
- 43.77 $
- Mentioned in
- Rider's Perpetual, Volume 2 = 1932 and before (October 26, 1931 Ozarka Sales Literature price list)
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
- Other Models
-
Here you find 92 models, 61 with images and 20 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Ozarka Inc.; Chicago
