• Country
• United States of America (USA)

• Manufacturer / Brand
• Pacific Electronics (Peco); Spokane, WA

• Year
• 1943 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 333784

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Two-Band Receiver [wooden cabinet] - Pacific Electronics Peco;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 15 x 6 x 9 inch / 381 x 152 x 229 mm

• Notes

• Pacific Electronics manufactured this radio during WWII and shortly after; it was supplied to U.S. Military Bases in PX's for service personal to purchase.

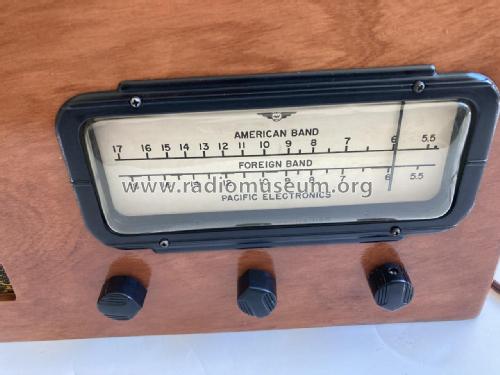

  The radio receives "American" (Broadcast) band and "Foreign" (SW) band from 5.5 to 17 MHz.

  Pacific produced similiar models, with the same or slightly differing chassis:

  • a model with simpler, painted cabinet in military grey
  • a portable model with handle, in a metal cabinet

• Net weight (2.2 lb = 1 kg)
• 9 lb 6 oz (9.375 lb) / 4.256 kg

• Mentioned in

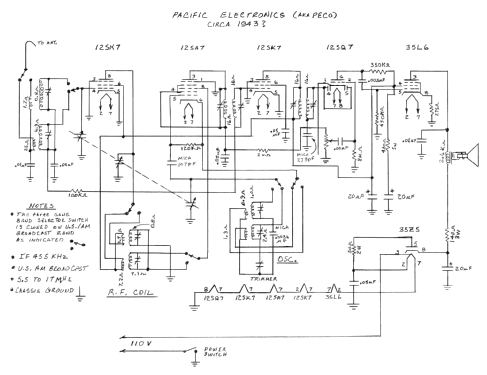

• -- Schematic (drawn by Andrew Hulsey)

• Author
• Model page created by Andrew Hulsey. See "Data change" for further contributors.
