- Country
- United States of America (USA)
- Manufacturer / Brand
- Pacific Radio Corp.; Chicago, IL
- Year
- 1937 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 334253
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

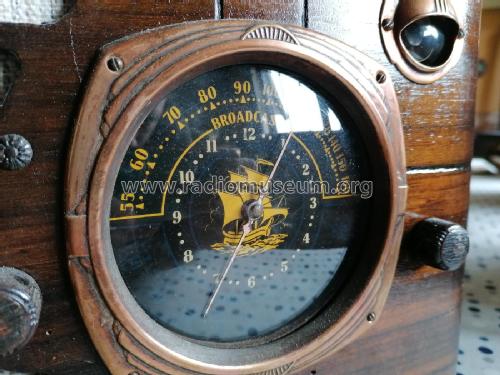

- Model: 61? - Pacific Radio Corp.; Chicago,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 385 x 220 x 165 mm / 15.2 x 8.7 x 6.5 inch
- Notes
-
This may be a model 61 based on the tubes. The magic eye 6U5 is from 1937.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Author
- Model page created by Francisco Martins. See "Data change" for further contributors.
