• Country
• United States of America (USA)

• Manufacturer / Brand
• Pacific Radio Corp.; Chicago, IL

• Year
• 1937 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 197588

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• 6A7 6D6 76 6F5 6G5 43 25Z5

• Number of Transistors

• Semiconductors
• L40S

• Main principle
• Superheterodyne (common)

• Wave bands

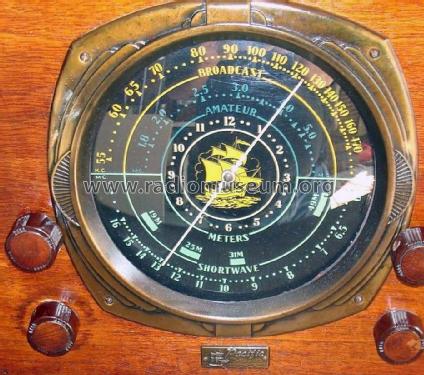

• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

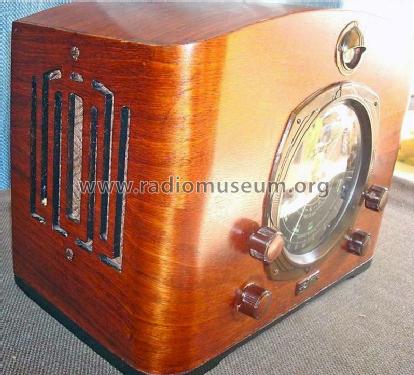

• Model: 37-6322 [side speaker] - Pacific Radio Corp.; Chicago,

• Shape
• Tablemodel, with any shape - general.

• External source of data
• Guest Lew Magrish.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
