- Country
- United States of America (USA)
- Manufacturer / Brand
- Pacific Radio Corp.; Chicago, IL
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 248949
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- L40C
- Main principle
- Superheterodyne (common)
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org

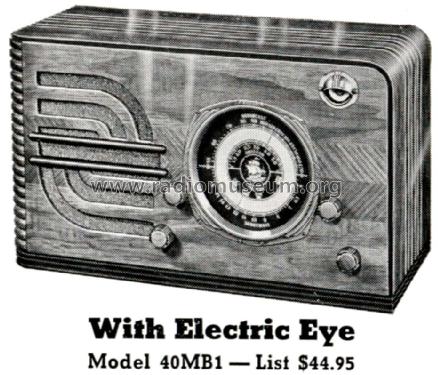

- Model: 40MB1 - Pacific Radio Corp.; Chicago,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 19.5 x 11 x 8 inch / 495 x 279 x 203 mm
- Notes
-
With electric eye.
- Price in first year of sale
- 42.45 $
- Literature/Schematics (3)
- The Pacific Folder New Designs for 1937.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
