- Country
- United States of America (USA)
- Manufacturer / Brand
- Pacific Mercury Television Mfg / Electronics Corp.; Sepulveda, CA
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 332293
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org

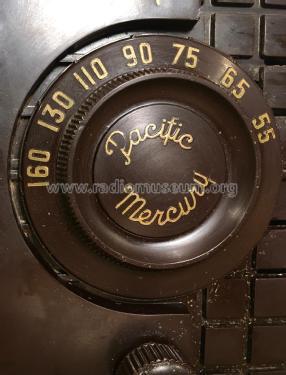

- Model: 080 - Pacific Mercury Television Mfg
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 10.5 x 5.5 x 5 inch / 267 x 140 x 127 mm
- Notes
-
Built in loop antenna. AC powered movement with alarm function.
Same chassis and case design as Silvertone 2007.
- Author
- Model page created by Steve Dymale. See "Data change" for further contributors.
