• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pacific (Brand) Various manufacturers

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 354575

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6B7 42 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 25 - Pacific Brand Various

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 410 x 285 x 0 mm / 16.1 x 11.2 x 0 inch

• Notes

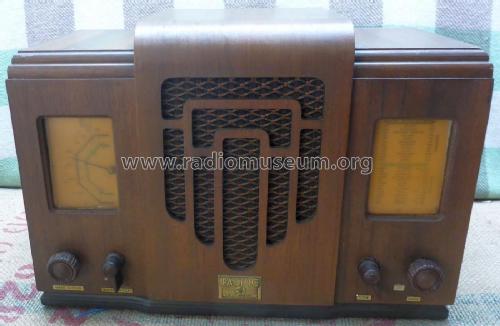

• 5-Valve superhet dual wave table model receiver.

  Featured a symmetrical layout with the edge-lit dial on the left and an edge-lit glass plate showing radio stations on the right. Some examples have Australian stations listed suggesting this model may have been exported to Australia. £15/15/-.

  Also available with magic eye tuning Model 25E.

  See also Columbus 25, Stella 25, CQ 25, & Courtenay 25.

  Manufactured for Pacific Radio Company Ltd by Radio Corporation Of New Zealand Ltd.

• Price in first year of sale
• 15.75 NZ £

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
