• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pacific (Brand) Various manufacturers

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 340869

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7B7 7S7 7B7 7C6 7C5 7Y4

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Various materials

• from Radiomuseum.org
• Model: Soundshell 6W0 - Pacific Brand Various

• Shape
• Console with any shape - in general

• Notes

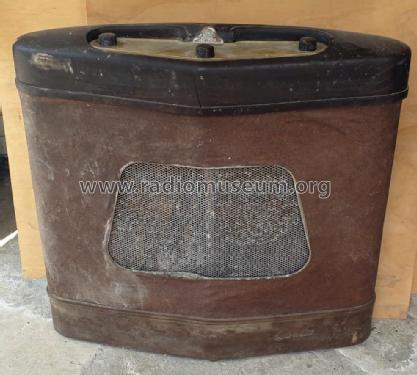

• 6-Valve superhet with RF stage broadcast (MW) consolette receiver.

  Nicknamed "The Flying Wing" due to it's wing like shape.

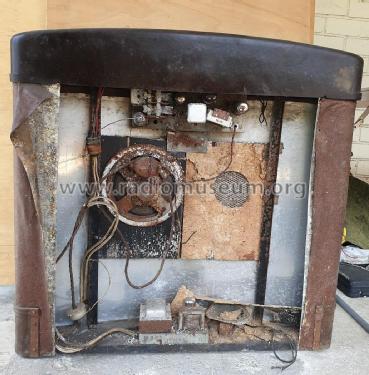

  Manufactured using an alloy sheet bent to the wing like shape and covered with brown rexine type fabric. Bakelite top.

  Similar appearance to Peter Pan Streamline Consolette made by Eclipse Radio PTY Ltd, Australia.

  Manufactured by Akrad Radio Corporation Ltd for G A Wooler Co Ltd.

• Mentioned in
• -- Original prospect or advert (Press 17 January 1951 Page 9)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
