- Country
- United States of America (USA)
- Manufacturer / Brand
- Packard Bell Co.; Los Angeles (CA)
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 316646

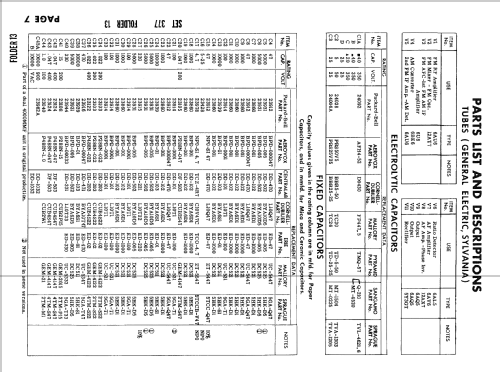

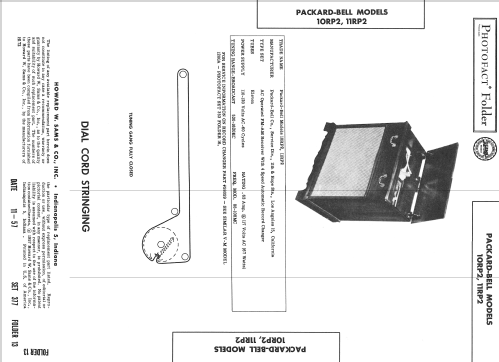

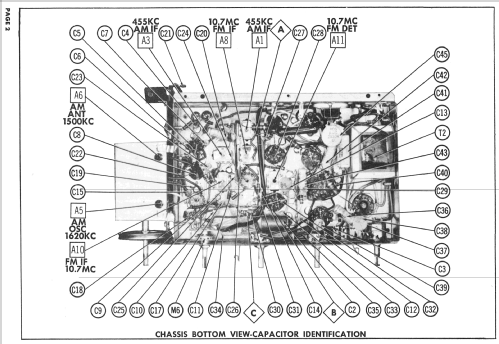

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 11RP2 - Packard Bell Co.; Los Angeles
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Packard-Bell model 11RP2 is a AC operated FM-AM receiver with 4 speed automatic record changer.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 377 Folder 13 dated 11-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
